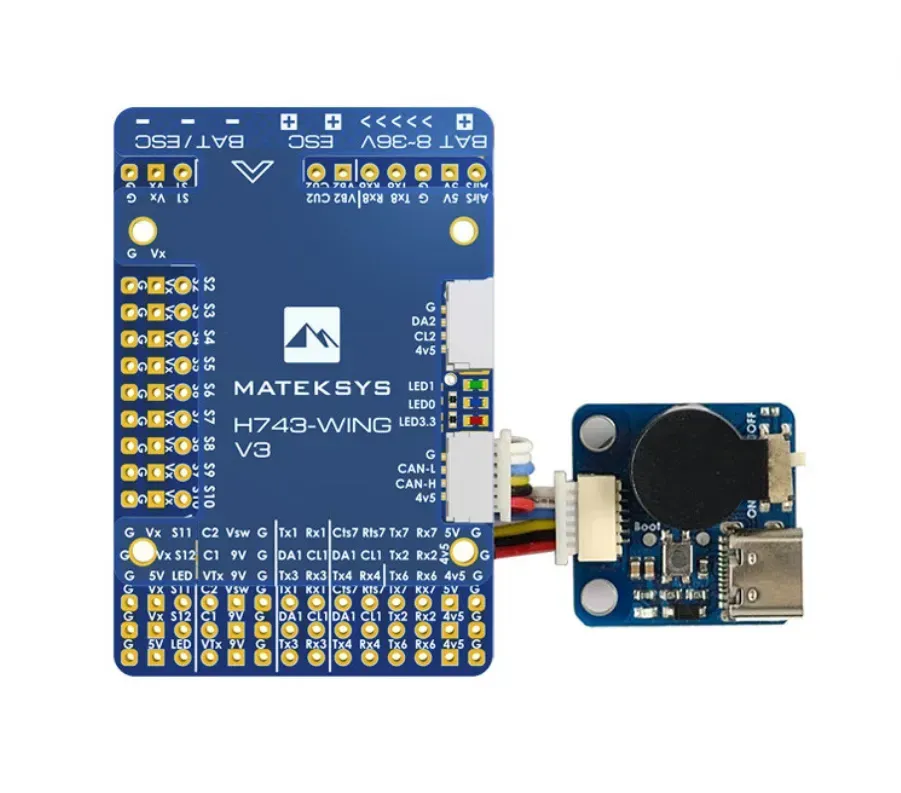

Flight controller MatekSys H743 H743 V3

Specifications:

• Processor: STM32H743VIT6, 480MHz, 1MB RAM, 2MB Flash memory
• Accelerometer / Gyroscope: ICM42688-P and ICM42605 (SPI4)
• Barometer: Infineon DPS310 (I2C2)
• OSD: AT7456E (SPI2)
• Blackbox: MicroSD card slot (SDIO)
• UART ports: 7 (1,2,3,4,6,7,8) with built-in inversion
• PWM outputs: 13 (including LED pad)
• I2C ports: 2
• CAN port: 1
• SPI3 breakout output: 1
• LED indicators for FC STATUS: 3 (blue, red) and 3.3V BEC indicator (red)
• ADC: VBAT, Current, RSSI, Analog AirSpeed, VB2, CU2
• External board: USB Type-C / Buzzer
• Camera inputs: Switchable dual camera support
• BEC switch: 5V / 9V (12V)
• High-precision current sensor: Available
• ADC VB2 voltage divider: 1K:10K
• ADC AirSpeed voltage divider: 10K:10K
• INAV TR/SA VTX control: Supported
• Buzzer support: Yes
• RSSI: Supported
• Analog Airspeed sensor connection: Supported
• Digital Airspeed sensor connection: Supported
• Idle power consumption: 160mA at 5V
• INAV firmware: MATEKH743
• Firmware (ArduPilot / ChiBiOS): MATEKH743
• Firmware (BetaFlight): MATEKH743
• Mounting: 30.5 x 30.5 mm, hole diameter 4mm, with 3mm soft spacers
• Dimensions: 54 x 36 x 13 mm
• Weight: 30g (with USB extender)
