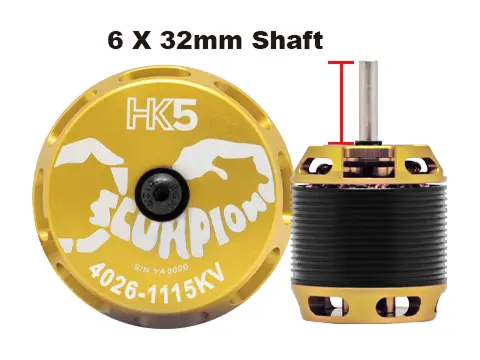

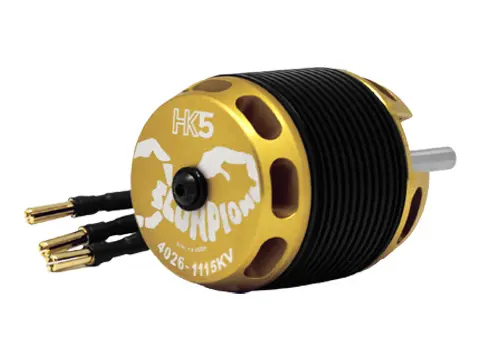

Motor Scorpion HK5-4026-1115kv (6x32mm shaft)

https://www.indigotech.com.ua/web/image/product.template/10/image_1920?unique=720c693
Specifications

  • Motor KV: 1115KV RPM/Volt
  • Weight: 367.7 grams (12.97 oz)
  • Motor Body Dimensions: 49.5 mm x 57.30 mm (1.95 in x 2.25 in)
  • External Shaft Dimensions: 5.98 mm x 36 mm (0.235 in x 1.42 in)
  • Continuous Current: 135 Amps
  • Continuous Power: 2775 Watts
  • Peak Current: 180 Amps (2 seconds)
  • Peak Power: 4050 Watts (2 seconds)
  • Max LiPo Cells: 6s
  • Stator Diameter: 40 mm (1.57 in)
  • Stator Thickness: 26 mm (1.02 in)
  • Number of Stator Arms: 12
  • Number of Stator Poles: 10
  • Motor Wind: 3T Delta
  • Motor Wire Diameter: 1.7 mm

100.00 € 100.0 EUR 100.00 €

Not Available For Sale

    This combination does not exist.

    Contact Us
    Brand: Scorpion
    KV: 1115
    Standard size: 4026
    Nominal operating voltage: 6S
    Category: Engines
    Power: 4050
