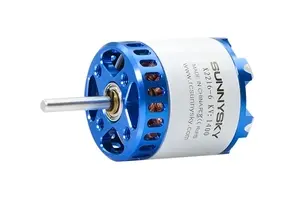

Motor SunnySky X2216 V3 KV860

Specifications

• Stator Diameter: 22 mm
• Stator Thickness: 16 mm
• Number of Stator Slots: 12
• Number of Rotor Poles: 14
• Motor Power: 1400W
• No-load Current: 1.2A/10V
• Motor Resistance: 32.2mΩ
• Max Continuous Current: 50A/30s
• Max Continuous Power: 740W
• Weight: 71 g
• Rotor Diameter: 27.7 mm
• Body Length: 34 mm
• Power Supply: 3-4S
• ESC: 40-50A
• Recommended Propellers: APC 8060 / APC 9047 / APC 9045
• Weight for Aerobatic Plane: 850 g (3S 9060 / 9047 / 9045), (4S 8060)
• Weight for 3D Plane: 750 g (3S 9047)
