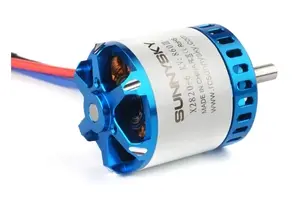

Motor SunnySky X2820 V3 KV860

Specifications

• Stator Diameter: 28 mm
• Rotor Diameter: 35 mm
• Stator Thickness: 20 mm
• Motor Length: 42 mm
• Stator Slots: 12
• Power Supply: 3-4S
• Rotor Poles: 14
• ESC: 50-60A
• Motor Kv: 860
• Recommended Propellers: 136.5 / 138 / 126 / 128
• Idle Current: 1.3A / 10V
• Max Continuous Current: 65A / 30s
• Motor Resistance: 25.8 mΩ
• Max Continuous Power: 960W
• Weight: 143g
• Recommended Weight for 3D Plane (1100-1500g): (4S 126 / 128 / 136.5 / 138)
• Recommended Weight for Aerobatic Plane (1400-2000g): (4S 126 / 128 / 136.5 / 138)
