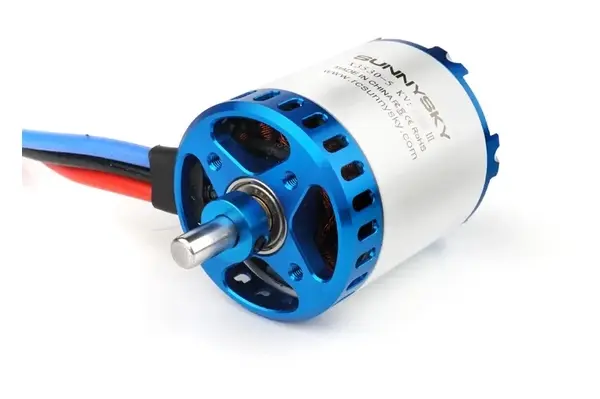

Motor SunnySky X3530 V3 KV650

Specifications

• Stator/Rotor Poles: 12N14P
• Internal Resistance: 11.3 mΩ
• Motor Size: φ42.5 × 55 mm
• Shaft Diameter: 5.0 mm
• AWG: 20AWG, 110 mm
• Motor Weight (with wire): 305 g
• Nominal Operating Voltage: 5-6S
• No-load Current: 2A/10V
• Max Continuous Power: 2310 W
• Max Continuous Current: 110A/30s
• Recommended ESC: 80-120A
• Recommended Propeller Size: 6S (APC 128 / EOLO 137), 5S (EOLO 144 / 148)
