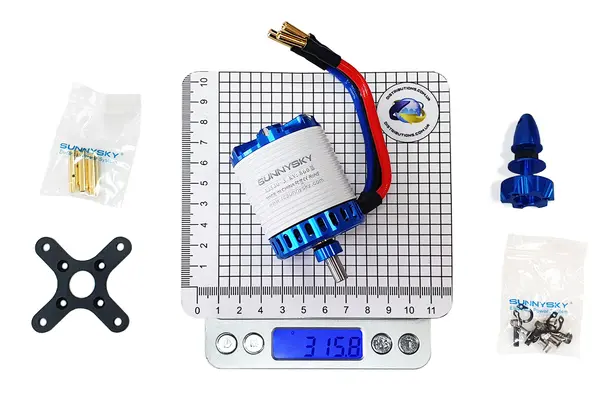

Motor SunnySky X3530 V3 KV860

SunnySky X3530 V3 KV860 Brushless Motor for airplanes, with a maximum thrust of 6320g.

Specifications:

• Manufacturer: SunnySky
• Model: X3530
• Series: X V3
• Type: Electric
• Class: Brushless
• Design: Outrunner
• Size: 3530
• KV Rating: 860KV
• Maximum Thrust: 500 – 6320 g
• Input Voltage: 14.8V
• Rated Current: 2.7A
• Peak Current: 90.3A
• No-load Current: 1.94A
• Max Continuous Current: 120A
• Max Continuous Power: 1800W
• Sensored: No
• Shaft: No
• Shaft Diameter: 5 mm
• Resistance: 7.3 mΩ
• Configuration: 12N14P
• Number of Poles: 14
• Rotation Direction: CW / CCW
• Recommended Propellers: 1307 | 1407 | 1408
• Supports Self-locking Propellers: No
• Dimensions: 42.5 x 42.5 x 55 mm
• Weight: 305 g
